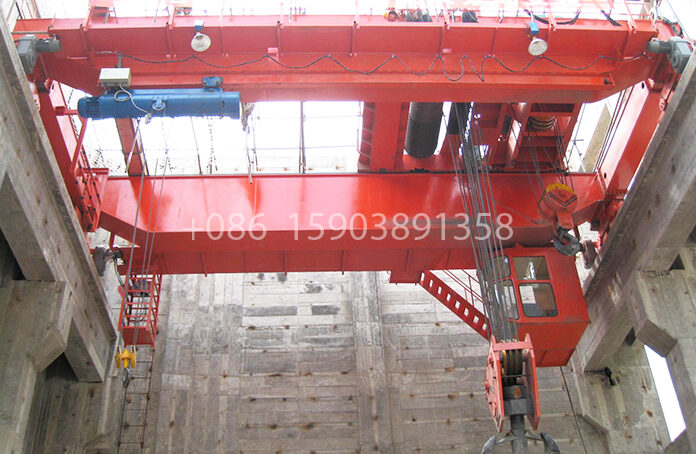

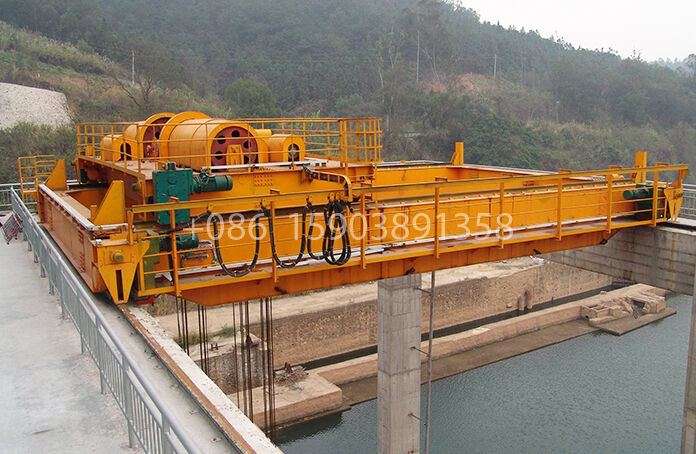

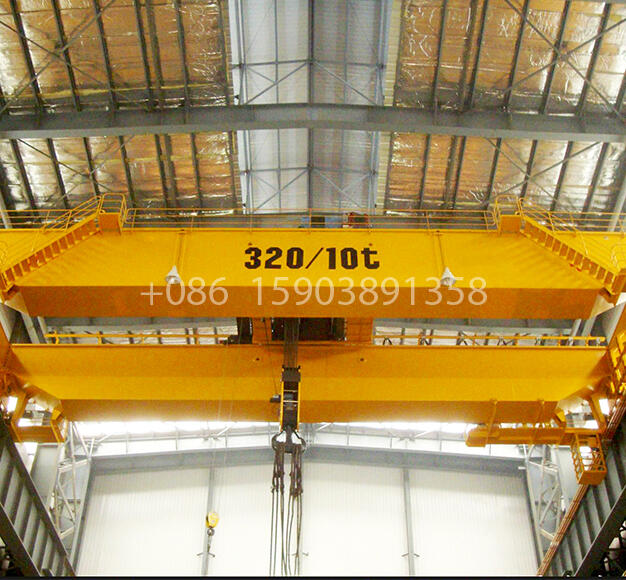

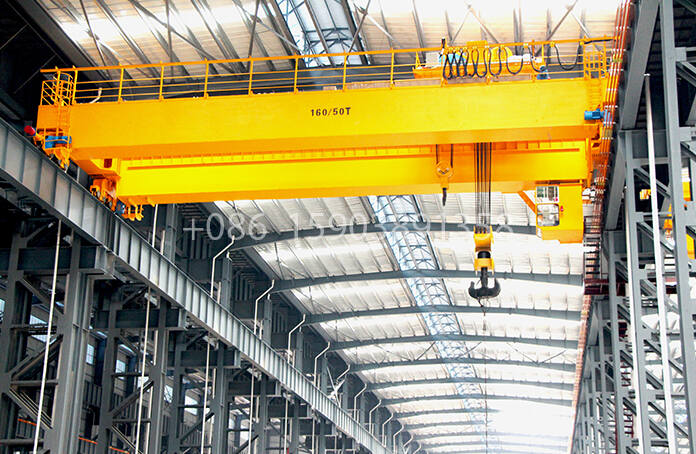

Hook Type Double Girder Bridge Crane
The double-girder bridge crane with hook is a powerful and widely used lifting device. It adopts a two-main-girder structure design and is composed of various core components, featuring stable operation, strong load-bearing capacity, and high safety and reliability. It offers diverse working levels and flexible operation methods, adaptable to various lifting tools, and is widely used in material handling operations in various locations such as railway stations, ports, and industrial and mining enterprises. It is suitable for various complex indoor and outdoor environments, but there are specific usage restrictions, requiring strict adherence to safety requirements and regulations.
Product Description
The double-girder bridge crane with hook is a specialized piece of equipment used for lifting, transporting, and loading/unloading materials within a fixed span. Based on its core features and applications, the specific details are as follows:
Core Application
Primarily used for lifting, transporting, and loading/unloading materials within a fixed span, adaptable to the heavy-duty lifting needs of various industrial scenarios.
Structural Composition
Mainly composed of a bridge frame, trolley traveling mechanism, trolley, electrical equipment, etc. The two-main-girder structure ensures stable operation and strong load-bearing capacity.
Working Level
Divided into three working levels: A5, A6, and A7, based on usage frequency. The appropriate level can be selected according to the actual operating frequency.
Operation Method
The operator's cab is available in three types: open, enclosed, and insulated. The operator's cab platform entrance is available from the side, end, or top. Generally, an overhead operation method is used, where a separate small operator's cab is located below the crane for convenient operation.
Safety Assurance
Equipped with overload limiters, a large-screen display, and various protective devices, multiple protective measures significantly improve safety during use.
Lifting Tool Configuration

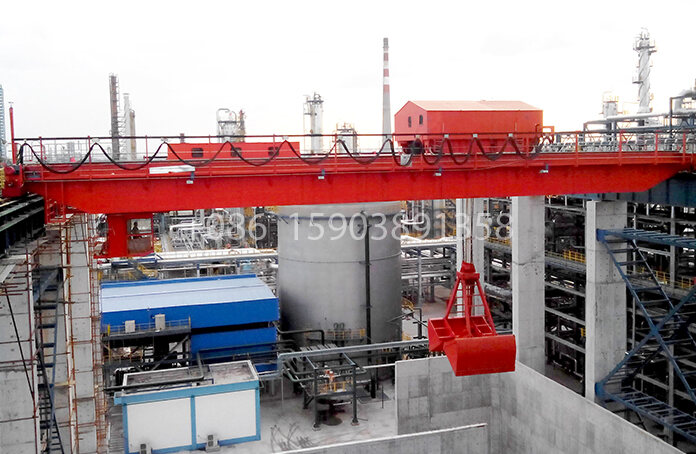

Standard configuration includes high-strength forged hooks. Specialized lifting tools such as electromagnetic chucks, grab buckets, and balance beam lifting tools can also be equipped according to actual work needs to adapt to different material lifting requirements.
Application Scope
Suitable for workshops in railway stations, ports, industrial and mining enterprises, etc., and can be used for lifting operations in machining, assembly workshops, metal structure workshops, metallurgical and casting workshops, and various warehouses.
Environmental Adaptability
Suitable for various indoor and outdoor working environments, including complex conditions such as high temperature, low temperature, and humidity, exhibiting strong adaptability.
Usage Contraindications
Strictly prohibited for use in flammable, explosive, corrosive (acids, alkalis, zinc vapor), high-temperature solutions, overload, powder, and other hazardous operations. Strict adherence to safety operating procedures is required.
Product Feature
Scientific Structural Design
Composed of a cable tray, trolley traveling mechanism, trolley, and electrical equipment, employing a two-main-beam structure, it boasts stable operation and strong load-bearing capacity, enabling stable lifting of heavy objects.
Multiple Working Levels
Divided into three working levels—A5, A6, and A7—based on usage frequency, adapting to different work frequency needs and offering strong practicality.
Flexible Operation Methods
The operator's cab is available in three types: open, closed, and insulated. The platform entrance to the operator's cab is available from the side, end, or top. Generally, an overhead operator's cab design is adopted, facilitating operation and adapting to different environments.
Comprehensive Safety Protection
Equipped with overload limiters, a large-screen display, and various protective devices, providing multiple safety safeguards and effectively reducing operational safety risks.
Strong Lifting Tool Adaptability
Standard configuration includes high-strength forged hooks; specialized lifting tools such as electromagnetic chucks and grab buckets can be added according to actual needs, adapting to the lifting of different types of materials.
Wide Environmental Adaptability
Can operate in various complex indoor and outdoor environments, including high temperature, low temperature, and humid conditions, applicable to a wide range of scenarios.
Wide Application Range
Suitable for railway stations, ports, various industrial and mining enterprises, and different types of workshops and warehouses, capable of lifting, transporting, and loading/unloading various materials.
Wheel Assembly Materials
Main Material Specifications
1. Main Structure (Cable Tray, Main Beam, End Beam): The core is made of high-quality carbon structural steel (mostly Q235B or Q355B), welded and aged, possessing high strength, high rigidity, and good load-bearing capacity, ensuring stable operation and resisting corrosion in complex environments.
2. Lifting Gear Components: The hook is forged from high-strength alloy steel, heat-treated for enhanced hardness, toughness, and load-bearing capacity. The accompanying electromagnetic chuck, grab bucket, and other specialized lifting gear utilize high-strength steel and wear-resistant alloys as core materials, adaptable to various material lifting needs.
3. Traveling Mechanism Components: The wheels of the trolley and crane traveling mechanisms are made of forged steel (commonly 65Mn or 42CrMo), quenched and tempered for high hardness and wear resistance. Gears, shafts, and other transmission components are made of heat-treated alloy steel, ensuring high mechanical efficiency and long service life.
4. Electrical and Safety Components: Controllers, cables, contactors, and other components of the electrical equipment are made of high-quality dustproof, moisture-proof, and high-temperature resistant electrical materials, suitable for complex working environments. Overload limiters, protection devices, and other core components utilize high-precision, high-reliability metal and electrical materials to ensure stable safety protection functions.
5. Auxiliary components: The outer shell of the operating room is made of high-quality steel plate and can be insulated and sealed according to the type; the connectors and fasteners are made of high-strength carbon steel or stainless steel, which is rust-proof and corrosion-resistant, ensuring that all components are firmly connected and improving the overall stability of the equipment.
